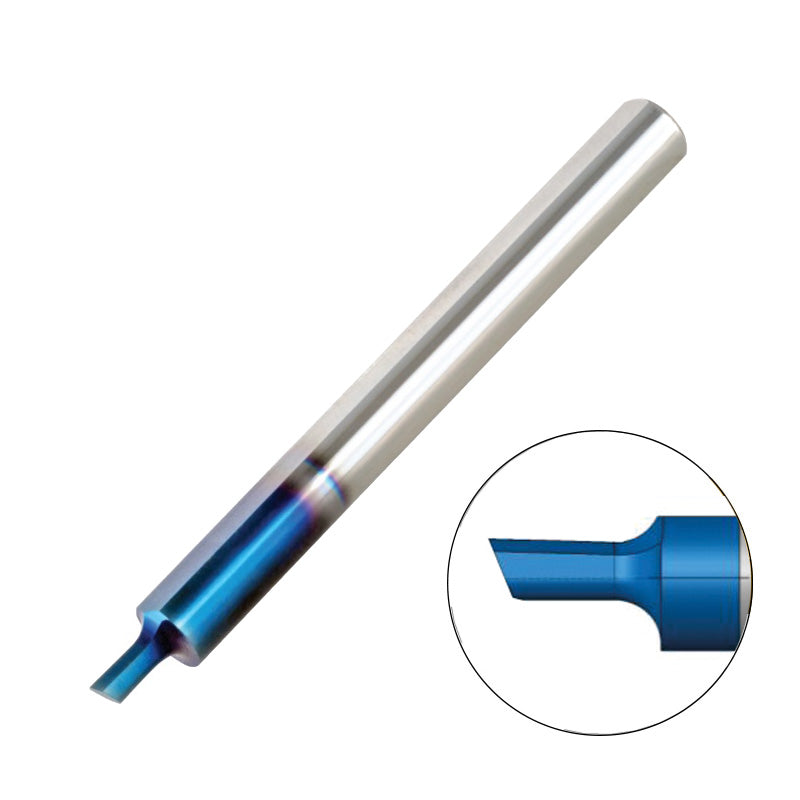

Carmex Carbide Tiny Tools - Broaching Tool (HK)
From
£36.57
View Products
£36.57
The HK broaching system has been developed in order to machine internal keyways inside blind or through holes, using CNC machines. Note: To be used with standard Tiny holders (SIM…H#). The holder can be placed either in the turret, or in the spindle of the machine. Sub-micron grade with advanced PVD triple coating (ISO K10-K20). Extremely high heat resistance for maximum performance; Smooth cutting operation. General purpose for all materials.
| Product SKU | Socket Size | Overall Length | Broach Depth | R | F | Min Dia | Holder | Shank Diameter | Price | Stock | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HK1S12L2BMK | 1.2-1.6 | 51 | 2.3 | 0.05 | 0.10 | 1.2 | SIM...H4 | 4.0 | £36.57 |
5 days |
View product |
| HK1S16L2BMK | 1.6-2.3 | 51 | 2.5 | 0.05 | 0.10 | 1.6 | SIM...H4 | 4.0 | £36.57 |
5 days |
View product |
| HK2S23L4BMK | 2.3-2.9 | 51 | 4.0 | 0.05 | 1.35 | 2.2 | SIM...H5 | 5.0 | £36.57 |
5 days |
View product |
| HK3S30L5BMK | 3.0-4.0 | 51 | 5.5 | 0.05 | 1.35 | 2.9 | SIM...H5 | 5.0 | £42.31 |
5 days |
View product |
| HK4S40L6BMK | 4.0-5.0 | 51 | 6.5 | 0.10 | 1.35 | 3.9 | SIM...H5 | 5.0 | £39.73 |
5 days |
View product |
| HK5S50L9BMK | 5.0-8.0 | 62 | 9.5 | 0.10 | 1.35 | 4.9 | SIM...H7 | 7.0 | £43.88 |
5 days |
View product |
