Widin Carbide End Mill - 2 Flute Square Edge - Extended Neck - 30° Helix - 0.1mm

Widin Carbide End Mill - 2 Flute Square Edge - Extended Neck - 30° Helix (ZE702)


From
£19.99
View Products
Need Help?
Contact Sales

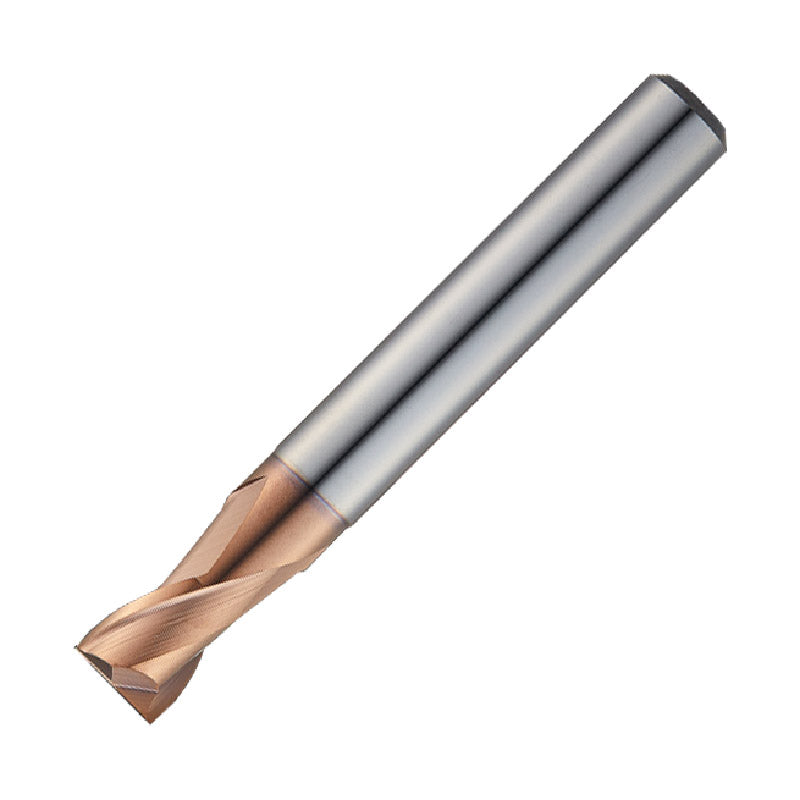

A high-performance end mill designed for machining high hardened materials up to HRc70. With its extended neck design and a 30° helix angle, it offers enhanced reach and stability during cutting operations. The end mill is coated with ALTiN+HH, a state-of-the-art coating that provides exceptional wear resistance and heat dissipation. This coating, combined with the use of a newly developed raw-material, allows for efficient dry cutting and high-speed cutting, resulting in improved productivity and reduced downtime. The ZE702 is known for delivering excellent workpiece finishes, ensuring precise and smooth surfaces. Whether you are working with tough materials or aiming for high-quality results, this end mill is a reliable choice for your machining needs.


Product SKU Cutter Diameter Number of Flutes Flute Length Overall Length Shank Diameter Reach Price Stock
ESE702001 0.1 2 0.2 40 4 N/A £36.36

5 days

ESE702002 0.2 2 0.4 40 4 N/A £33.47

5 days

ESE702003 0.3 2 0.5 40 4 N/A £28.22

5 days

ESE702004 0.4 2 0.7 40 4 N/A £28.22

5 days

ESE702005 0.5 2 1 40 4 N/A £25.36

5 days

ESE702006 0.6 2 1.2 40 4 N/A £25.36

5 days

ESE702007 0.7 2 1.4 40 4 N/A £25.36

5 days

ESE702008 0.8 2 1.6 40 4 N/A £25.36

5 days

ESE702009 0.9 2 2 40 4 N/A £25.36

5 days

ESE702010 1 2 1.5 40 6 N/A £21.56

5 days

ESE702010S4 1 2 1.5 40 4 N/A £19.99

5 days

ESE702015 1.5 2 2.2 40 6 N/A £21.56

5 days

ESE702020 2 2 3 40 6 6 £21.56

5 days

ESE702020S4 2 2 3 40 4 6 £19.99

5 days

ESE702025 2.5 2 4 40 6 6 £22.63

5 days

ESE702030 3 2 4 45 6 7 £22.63

5 days

ESE702035 3.5 2 6 45 6 9 £22.63

5 days

ESE702040 4 2 6 45 6 9 £22.63

5 days

ESE702045 4.5 2 6 45 6 10 £22.63

5 days

ESE702050 5 2 6 50 6 11 £24.72

5 days

ESE702060 6 2 7 50 6 14 £24.72

5 days

ESE702080 8 2 9 60 8 18 £28.41

5 days

ESE702100 10 2 12 75 10 25 £38.94

5 days

ESE702120 12 2 15 75 12 30 £50.52

5 days

ESE702160 16 2 18 90 16 38 £131.53

5 days

ESE702200 20 2 24 100 20 45 £182.02

5 days
