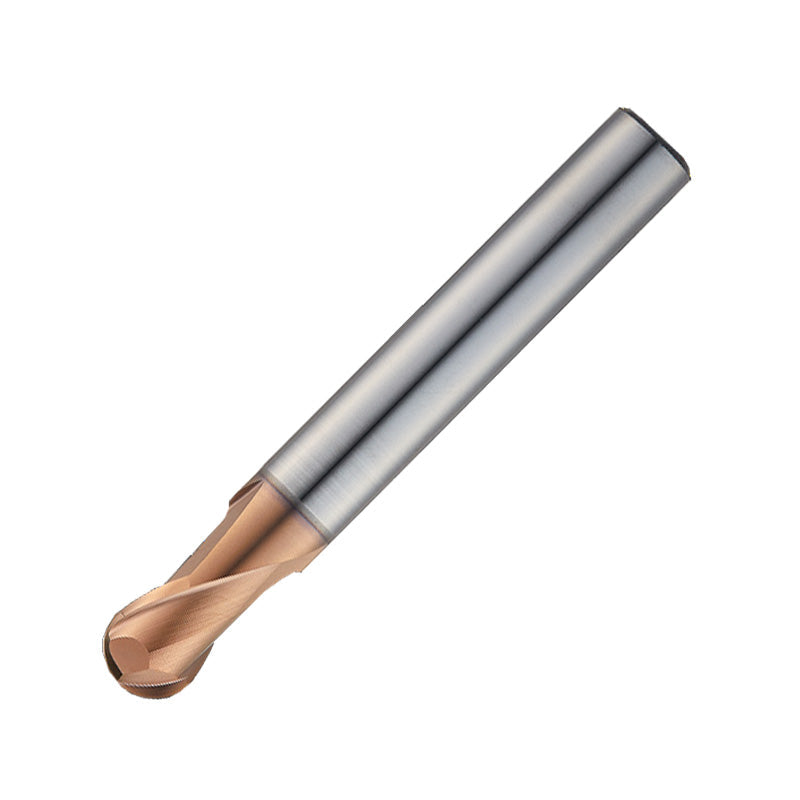

Widin Carbide End Mill - 2 Flute Stub Cut Length - Ball Nose (DB702)
From
£29.87
View Products
£29.87
This high-performance end mill is designed with a stub cut length and an extended neck, providing increased reach and accessibility in machining operations. With its ALTiN+HH coating and newly developed raw-material, this end mill is specifically engineered for machining high hardened materials up to HRc70. It is well-suited for dry cutting and high-speed cutting applications, delivering exceptional performance and productivity. The end mill's two-flute design ensures efficient chip evacuation and reduced cutting forces, resulting in smoother cutting operations. It enables precise contouring, profiling, and machining of intricate features with excellent workpiece finish.
Product SKU | Cutter Diameter | Number of Flutes | Flute Length | Overall Length | Shank Diameter | Reach | Radius | Neck Diameter | Price | Stock | |
---|---|---|---|---|---|---|---|---|---|---|---|
ESB702001 | 0.1 | 2 | 0.15 | 40 | 4 | N/A | 0.05 | N/A | £53.57 | 0 | View product |
ESB702002 | 0.2 | 2 | 0.3 | 40 | 4 | N/A | 0.1 | N/A | £48.79 | 0 | View product |
ESB702003 | 0.3 | 2 | 0.5 | 40 | 4 | N/A | 0.15 | N/A | £40.18 | 0 | View product |
ESB702004 | 0.4 | 2 | 0.6 | 40 | 4 | N/A | 0.2 | N/A | £40.18 | 0 | View product |
ESB702005 | 0.5 | 2 | 0.7 | 40 | 4 | N/A | 0.25 | N/A | £34.90 | 0 | View product |
ESB702006 | 0.6 | 2 | 0.9 | 40 | 4 | N/A | 0.3 | N/A | £34.90 | 0 | View product |
ESB702007 | 0.7 | 2 | 1.1 | 40 | 4 | N/A | 0.35 | N/A | £34.90 | 0 | View product |
ESB702008 | 0.8 | 2 | 1.2 | 40 | 4 | N/A | 0.4 | N/A | £34.90 | 0 | View product |
ESB702009 | 0.9 | 2 | 1.4 | 40 | 4 | N/A | 0.45 | N/A | £34.90 | 0 | View product |
ESB702010 | 1 | 2 | 1.5 | 45 | 4 | N/A | 0.5 | N/A | £31.43 | 0 | View product |
ESB702010S4 | 1 | 2 | 1.5 | 50 | 6 | 3 | 0.5 | 0.95 | £29.87 | 0 | View product |
ESB702015S4 | 1.5 | 2 | 2 | 50 | 6 | 4 | 0.75 | 1.45 | £29.87 | 0 | View product |
ESB702015 | 1 | 2 | 2 | 45 | 4 | N/A | 0.75 | N/A | £31.43 | 0 | View product |
ESB702020S4 | 2 | 2 | 2.5 | 50 | 6 | 5 | 1 | 1.9 | £29.87 | 0 | View product |
ESB702025 | 2.5 | 2 | 3 | 50 | 6 | 7 | 1.25 | 2.45 | £31.43 | 0 | View product |
ESB702030 | 3 | 2 | 4 | 45 | 4 | N/A | 1.5 | N/A | £34.18 | 0 | View product |
ESB702030S | 3 | 2 | 4 | 50 | 6 | 10 | 1.5 | 2.9 | £31.43 | 0 | View product |
ESB702030S4 | 3 | 2 | 4 | 60 | 6 | 10 | 1.5 | 2.9 | £29.87 | 0 | View product |
ESB702031 | 3 | 2 | 4 | 70 | 6 | 10 | 1.5 | 2.9 | £35.72 | 0 | View product |
ESB702040 | 4 | 2 | 5 | 45 | 4 | N/A | 2 | N/A | £34.18 | 0 | View product |
ESB702040S | 4 | 2 | 5 | 50 | 6 | 10 | 2 | 3.7 | £31.43 | 0 | View product |
ESB702040S4 | 4 | 2 | 5 | 60 | 6 | 10 | 2 | 3.7 | £29.87 | 0 | View product |
ESB702041 | 4 | 2 | 5 | 70 | 6 | 10 | 2 | 3.7 | £35.72 | 0 | View product |
ESB702050 | 5 | 2 | 6 | 60 | 6 | 12 | 2.5 | 4.7 | £34.90 | 0 | View product |
ESB702060 | 6 | 2 | 7 | 60 | 6 | 12 | 3 | 5.6 | £34.90 | 0 | View product |
ESB702061 | 6 | 2 | 7 | 90 | 6 | 12 | 3 | 5.9 | £42.43 | 0 | View product |
ESB702080 | 8 | 2 | 9 | 70 | 8 | 15 | 4 | 7.4 | £46.12 | 0 | View product |
ESB702081 | 8 | 2 | 9 | 100 | 8 | 15 | 4 | 7.9 | £49.23 | 0 | View product |
ESB702100 | 10 | 2 | 11 | 75 | 10 | 25 | 5 | 9.4 | £52.50 | 0 | View product |
ESB702101 | 10 | 2 | 11 | 100 | 10 | 25 | 5 | 9.9 | £62.67 | 0 | View product |
ESB702120 | 12 | 2 | 12 | 80 | 12 | 25 | 6 | 11.4 | £65.37 | 0 | View product |
ESB702121 | 12 | 2 | 12 | 110 | 12 | 25 | 6 | 11.9 | £69.38 | 0 | View product |
