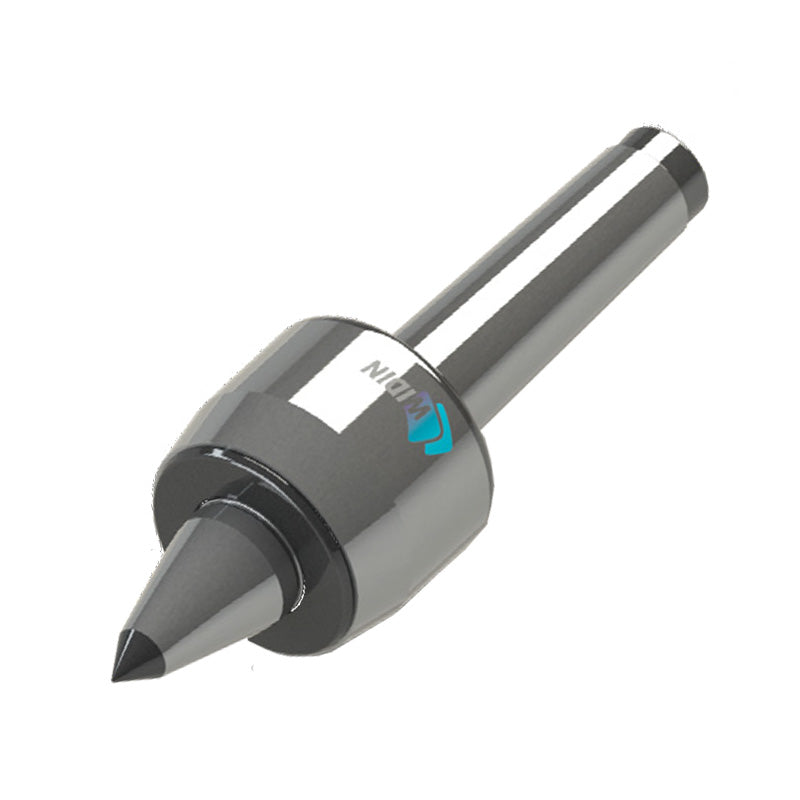

Widin Live Centre - Carbide Tipped - Minimizes Bite Interference - NCBC Type - NO.3

Widin Live Centre - Carbide Tipped - Minimizes Bite Interference - NCBC Type


From
£284.59
View Products
Need Help?
Contact Sales

Live Center for CNC lathe Prevent the inflow of cutting oil and foreign substance High degree of accuracy of rotation and high durability by using the triplexed bearing structure as high degree of precision Heat treatment hardness of Shaft : HRc58-62 RUN OUT 0.003


Product SKU Size Head Diameter Point Length Point Diameter Max RPM Max Load Concentricity GL L2 L3 L4 L5 C L Price Stock
LC-3NCBC MT3 50 47 22 4800 280 0.003 23.825 45 5 97 81 10 178 £284.59

5 days

LC-4NCBC MT4 66 53 32 3800 510 0.003 31.267 55 6.5 114.5 101.5 14 216 £332.03

5 days

LC-5NCBC MT5 82 65 40 3400 750 0.005 44.399 65 6.5 136.5 129.5 16 266 £418.66

5 days

LC-6NCBC MT6 105 78 45 3000 940 0.005 63.384 80 8 166 182 18 348 £958.94

5 days
