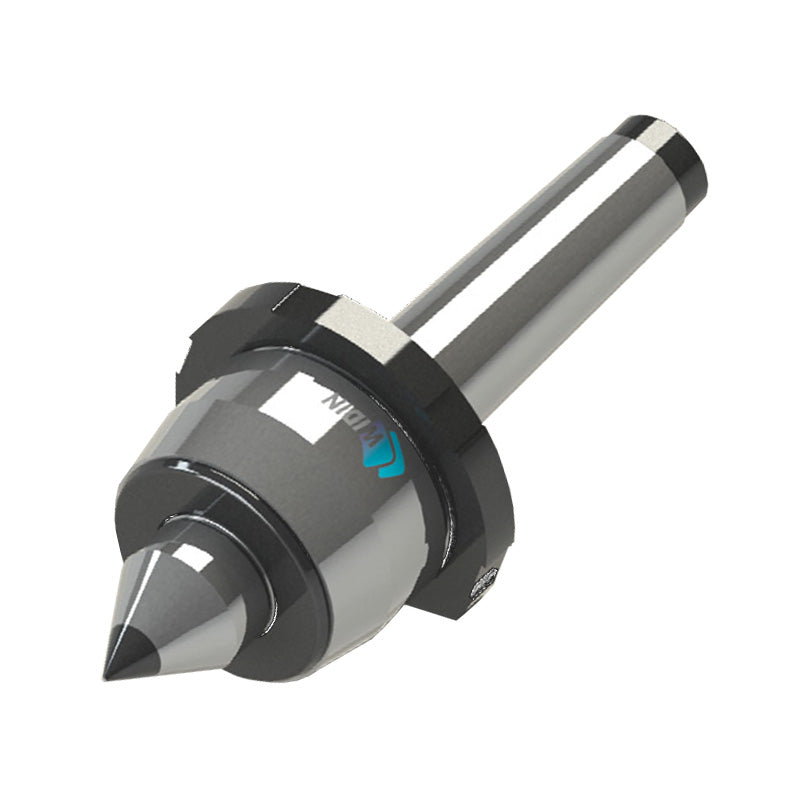

Widin Live Centre - Carbide Tipped - Nut Type - NCCN Type

From
£356.78

View Products

Need Help?

Contact Sales

NC STANDARD LATHE - CARBIDE TIPPED & NUT TYPE - LIVE CENTER

Morse Tapers Available - No. 3 - No. 6

Sealed to prevent the inflow of cutting oils and foreign substances

High precision of rotational accuracy and durability through triplexed bearing structure Shaft heated to 58 - 62 HRc

Run Out 0.00012" or 0.003mm

Product SKU	Size	Head Diameter	Point Length	Point Diameter	Max RPM	Max Load	Concentricity	GL	L2	L3	L4	L5	C	L	N	Price	Stock
LC-3NCCN	MT3	50	27	22	4800	630	0.003	23.825	45	5	77	81	10	158	70	£356.78	5 days	View product
LC-4NCCN	MT4	66	41	32	3800	1100	0.003	31.267	55	6.5	102.5	101.5	14	204	85	£408.35	5 days	View product
LC-5NCCN	MT5	82	50	40	3400	1600	0.005	44.399	65	6.5	121.5	129.5	18	251	105	£552.70	5 days	View product
LC-6NCCN	MT6	105	54	45	3000	2100	0.005	63.384	80	8	142	182	25	324	130	£1,200.22	5 days	View product
