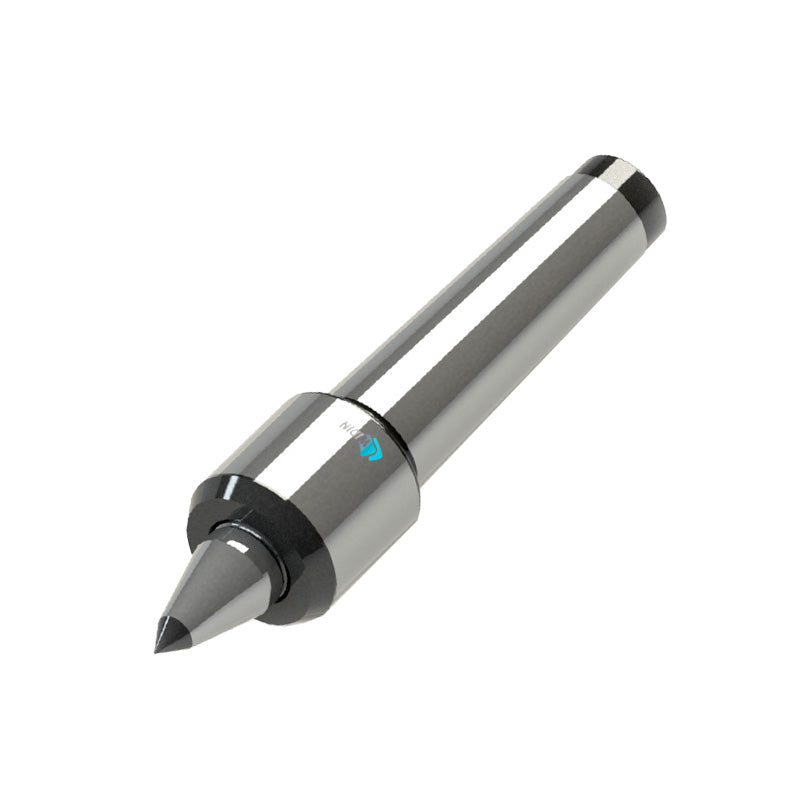

Widin Live Centre - CNC Standard - Carbide Tipped - D50BC Type - NO.3

Widin Live Centre - CNC Standard - Carbide Tipped - D50BC Type


From
£303.13
View Products
Need Help?
Contact Sales

  • CNC STANDARD - LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 5
  • Sealed to prevent the inflow of cutting oils and foreign substances Live Center for CNC Lathes
  • Run Out 0.00012"/0.0002" or 0.003mm/ 0.005mm.


  • Product SKU Size Head Diameter Point Length Point Diameter Max RPM Max Load Concentricity GL b L2 L3 L4 L5 L Price Stock
    LC-3D50BC MT3 34 25 22 4800 400 0.003 23.825 10 38 5 72 81 153 £303.13

    5 days

    LC-4D50BC MT4 42 36 22 3800 800 0.003 31.267 12 41 6.5 83.5 101.5 186.5 £350.60

    5 days

    LC-5D50BC MT5 58 53 32 3400 1600 0.005 44.399 16 60 6.5 119.5 129.5 249 £445.45

    5 days
