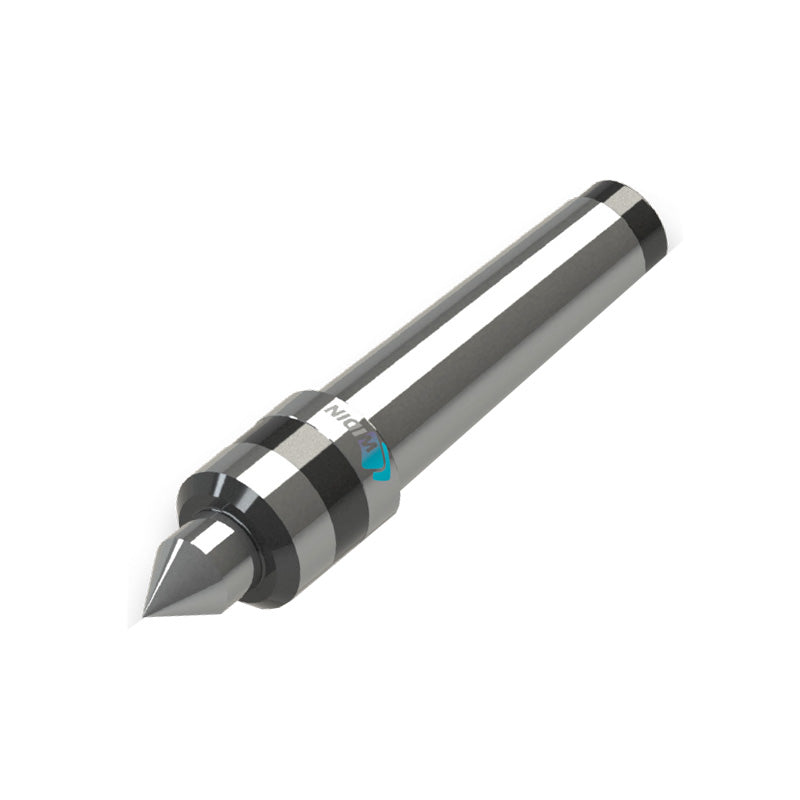

Widin Live Centre - Economical - HDS Type

From
£82.50

View Products

Need Help?

Contact Sales

ECONOMICAL - CARBIDE TIPPED - LIVE CENTER

Morse Tapers Available - No. 3 - No. 6

Wide range of uses and applications C

CAP rotation type which prevents inflow of foreign substances

Run Out 0.00012"/0.00024" or 0.003mm/ 0.006mm

Product SKU	Size	Head Diameter	Point Length	Point Diameter	Max RPM	Max Load	Concentricity	GL	L2	L3	L4	L5	L	Price	Stock
LC-2HDS	MT2	34	25	15	4500	70	0.003	17.78	40	5	70	64	134	£82.50	5 days	View product
LC-3HDS	MT3	36	27.5	18	4500	80	0.003	23.825	40.5	5	73	81	154	£85.58	5 days	View product
LC-4HDS	MT4	38	32	22	4500	80	0.003	31.267	42.5	6	80.5	102.5	183	£92.81	5 days	View product
LC-5HDS	MT5	64	47	30	2000	230	0.005	44.399	56.5	10	113.5	129.5	243	£193.88	5 days	View product
LC-6HDS	MT6	86	60	42	1500	600	0.005	63.384	66.5	10	136.5	182	318.5	£692.92	5 days	View product
