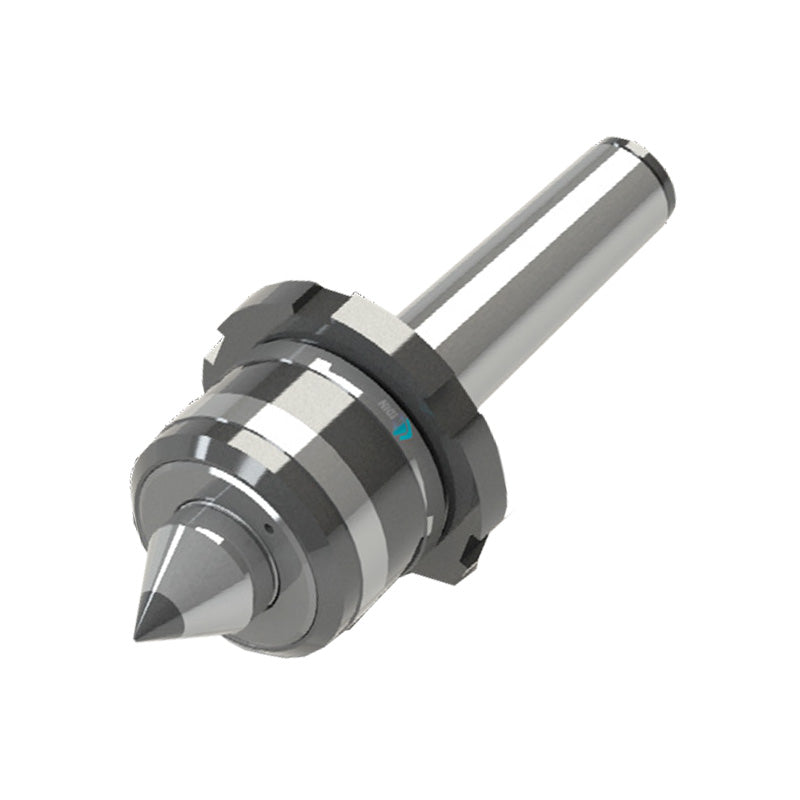

Widin Live Centre - Heavy Duty & Weight Requirements Lathe - Carbide Tipped - Nut Type - NKCN Type - NO.3

Widin Live Centre - Heavy Duty & Weight Requirements Lathe - Carbide Tipped - Nut Type - NKCN Type

From
£301.08
View Products
Need Help?
Contact Sales
0844 335 8984

  • NC HEAVY DUTY & WEIGHT REQUIREMENTS LATHE - CARBIDE TIPPED & NUT TYPE - LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 6
  • Sealed to prevent the inflow of cutting oils and foreign substances Longer life due to taper roller bearings
  • Shaft heated to 58 - 62 HRc
  • Run Out 0.00012" or 0.003mm

    • Product SKU Size Head Diameter Point Length Point Diameter Max RPM Max Load Concentricity GL L2 L3 L4 L5 C L N Price Stock
    LC-3NKCN MT3 52 29 22 5000 1900 0.003 23.825 42 5 76 80 10 156 70 £301.08

    5 days

    		 View product
    LC-4NKCN MT4 66 37 32 3800 2700 0.003 31.267 57 6.5 100.5 101.5 14 202 85 £358.83

    5 days

    		 View product
    LC-5NKCN MT5 80 45.5 40 3400 3200 0.005 44.399 57 6.5 109 129.5 18 238.5 98 £482.56

    5 days

    		 View product
    LC-6NKCN MT6 132 65 65 1800 10000 0.005 63.384 100 8 173 182 25 355 165 £1,693.14

    5 days

    		 View product
