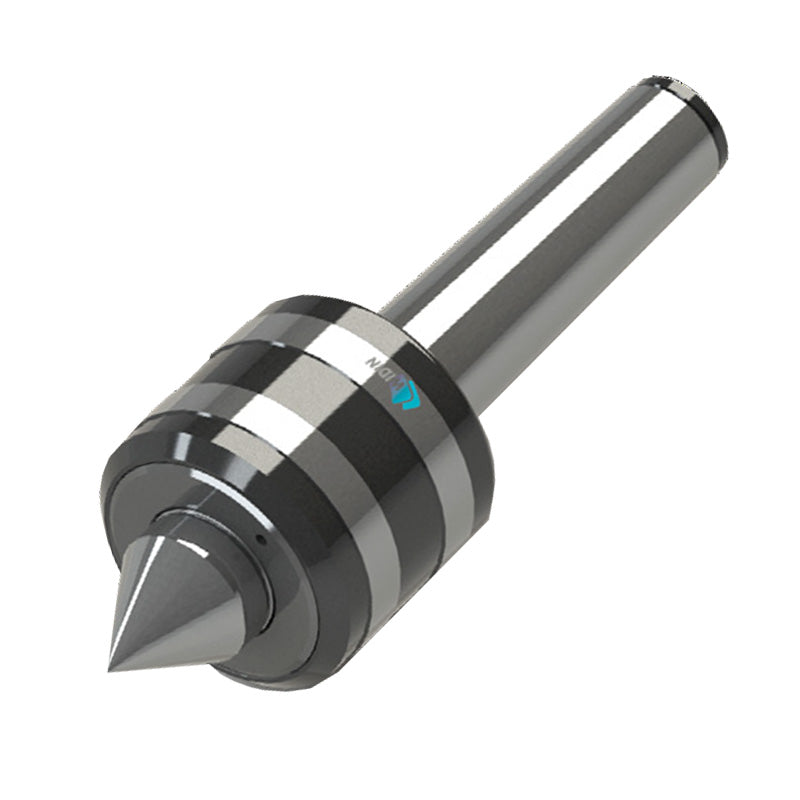

Widin Live Centre - Heavy Duty & Weight Requirements Lathe - NK Type - NO.3

Widin Live Centre - Heavy Duty & Weight Requirements Lathe - NK Type


From
£200.01
View Products
Need Help?
Contact Sales

  • NC HEAVY DUTY & WEIGHT REQUIREMENTS LATHE - LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 7
  • Semi high-speed use sealed to prevent the inflow of cutting oils and foreign substances
  • Longer life due to taper roller bearings
  • Shaft heated to 58 - 62 HRc
  • Run Out 0.00012" or 0.003mm


  • Product SKU Size Head Diameter Point Length Point Diameter Max RPM Max Load Concentricity GL L2 L3 L4 L5 L Price Stock
    LC-3NK MT3 50 29 22 5000 1900 0.003 23.825 42 5 76 80 156 £200.01

    5 days

    LC-4NK MT4 66 37 32 3800 2700 0.003 31.267 57 6.5 100.5 101.5 202 £235.07

    5 days

    LC-5NK MT5 80 45.5 40 3400 3200 0.005 44.399 57 6.5 109 129.5 238.5 £303.13

    5 days

    LC-6NK MT6 132 65 65 1800 10000 0.005 63.384 100 8 173 182 355 £1,123.93

    5 days

    LC-7NK MT7 168 84 72 1200 17200 0.005 83.058 128 10 222 250 427 £6,186.76

    5 days
