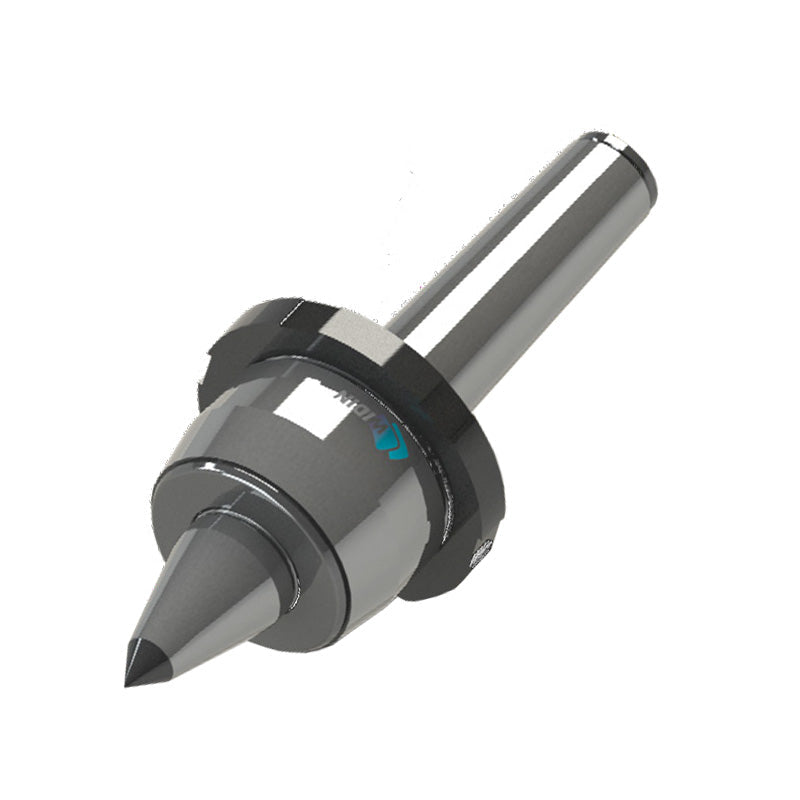

Widin Live Centre - Heavy Lathe - Carbide Tipped - Minimizes Bite Interference - Nut Type - NCPBCN Type - NO.3

Widin Live Centre - Heavy Lathe - Carbide Tipped - Minimizes Bite Interference - Nut Type - NCPBCN Type

From
£651.68
View Products
Need Help?
Contact Sales
0844 335 8984

  • NC HEAVY LATHE - MINIMIZES BITE INTERFERANCE, CARBIDE TIPPED & NUT TYPE - LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 6
  • Sealed to prevent the inflow of cutting oils and foreign substances
  • Upgraded bearings resulting in better durability and longer life compared to NC TYPE H
  • High precision of rotational accuracy and durability through triplexed bearing structure
  • Shaft heated to 58 - 62 HRc
  • Run Out 0.00012" or 0.003mm

    • Product SKU Size Head Diameter Point Length Point Diameter Max RPM Max Load Concentricity GL L2 L3 L4 L5 C L N Price Stock
    LC-3NCPBCN MT3 50 47 22 4800 410 0.003 23.825 45 5 97 81 10 178 70 £651.68

    5 days

    		 View product
    LC-4NCPBCN MT4 66 53 32 3800 710 0.003 31.267 55 6.5 114.5 101.5 14 216 85 £758.92

    5 days

    		 View product
    LC-5NCPBCN MT5 82 65 40 3400 1000 0.005 44.399 65 6.5 136.5 129.5 16 266 105 £956.89

    5 days

    		 View product
    LC-6NCPBCN MT6 100 78 45 3000 1400 0.005 63.384 80 8 166 182 25 348 130 £2,144.75

    5 days

    		 View product
