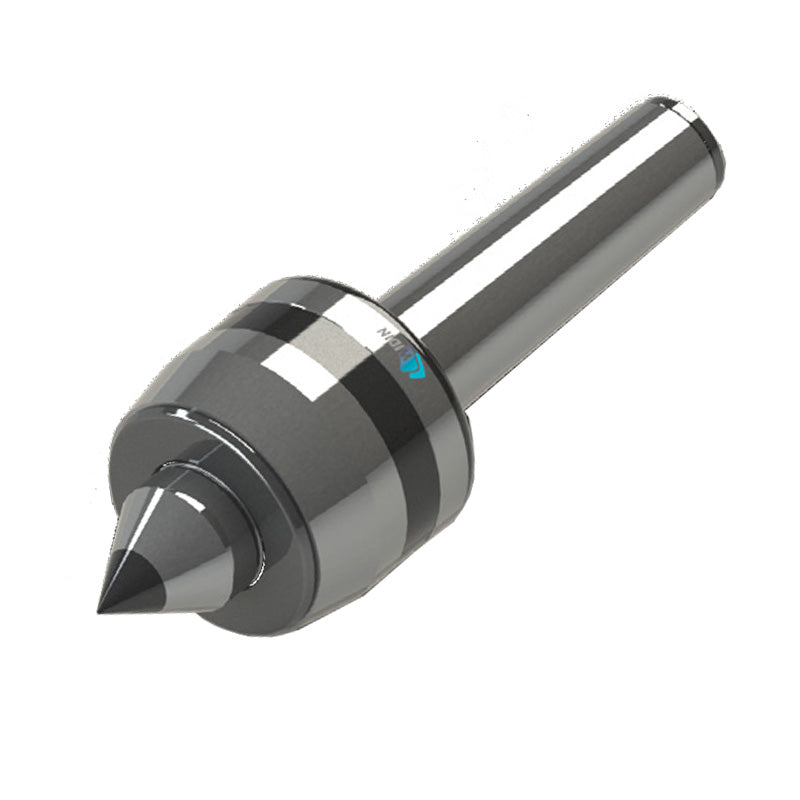

Widin Live Centre - Heavy Lathe - Carbide Tipped - Minimizes Bite Interference - Nut Type - NCPC Type - NO.3

Widin Live Centre - Heavy Lathe - Carbide Tipped - Minimizes Bite Interference - Nut Type - NCPC Type

From
£453.68
View Products
Need Help?
Contact Sales
0844 335 8984

  • NC HEAVY LATHE - MINIMIZES BITE INTERFERANCE, CARBIDE TIPPED & NUT TYPE - LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 6
  • Sealed to prevent the inflow of cutting oils and foreign substances Upgraded bearings resulting in better durability and longer life compared to NC TYPE
  • High precision of rotational accuracy and durability through triplexed bearing structure
  • Shaft heated to 58 - 62 HRc
  • Run Out 0.00012" or 0.003mm

    • Product SKU Size Head Diameter Point Length Point Diameter Max RPM Max Load Concentricity GL L2 L3 L4 L5 C L Price Stock
    LC-3NCPC MT3 50 27 22 4800 800 0.003 23.825 45 5 77 81 10 158 £453.68

    5 days

    		 View product
    LC-4NCPC MT4 66 37 32 3800 1300 0.003 31.267 55 6.5 98.5 101.5 14 200 £517.61

    5 days

    		 View product
    LC-5NCPC MT5 82 45 40 3400 1900 0.005 44.399 65 6.5 116.5 129.5 18 246 £701.17

    5 days

    		 View product
    LC-6NCPC MT6 100 65 45 3000 2500 0.005 63.384 80 8 153 182 25 355 £1,455.96

    5 days

    		 View product
