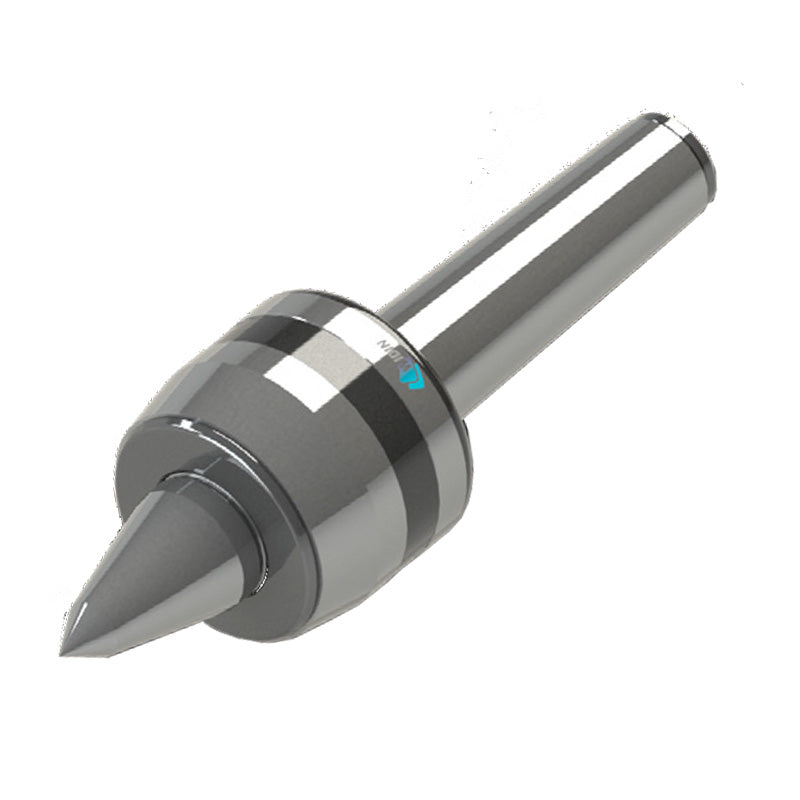

Widin Live Centre - Heavy Lathe - Minimizes Bite Interference - NCPB Type - NO.3

Widin Live Centre - Heavy Lathe - Minimizes Bite Interference - NCPB Type

From
£453.68
View Products
Need Help?
Contact Sales
0844 335 8984

  • NC HEAVY LATHE - MINIMIZES BITE INTERFERANCE- LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 6
  • Sealed to prevent the inflow of cutting oils and foreign substances
  • Upgraded bearings resulting in better durability and longer life compared to NC TYPE
  • High precision of rotational accuracy and durability through triplexed bearing structure
  • Shaft heated to 58 - 62 HRc
  • Run Out 0.00012" or 0.003mm

    • Product SKU Size Head Diameter Point Length Point Diameter Max RPM Max Load Concentricity GL b L2 L3 L4 L5 L Price Stock
    LC-3NCPB MT3 50 27 22 4800 410 0.003 23.825 10 45 5 97 81 178 £453.68

    5 days

    		 View product
    LC-4NCPB MT4 66 37 32 3800 710 0.003 31.267 14 55 6.5 114.5 101.5 216 £519.69

    5 days

    		 View product
    LC-5NCPB MT5 82 45 40 3400 1000 0.005 44.399 16 65 6.5 136.5 129.5 266 £635.16

    5 days

    		 View product
    LC-6NCPB MT6 100 65 45 3000 1400 0.005 63.384 18 80 8 166 182 348 £1,495.15

    5 days

    		 View product
