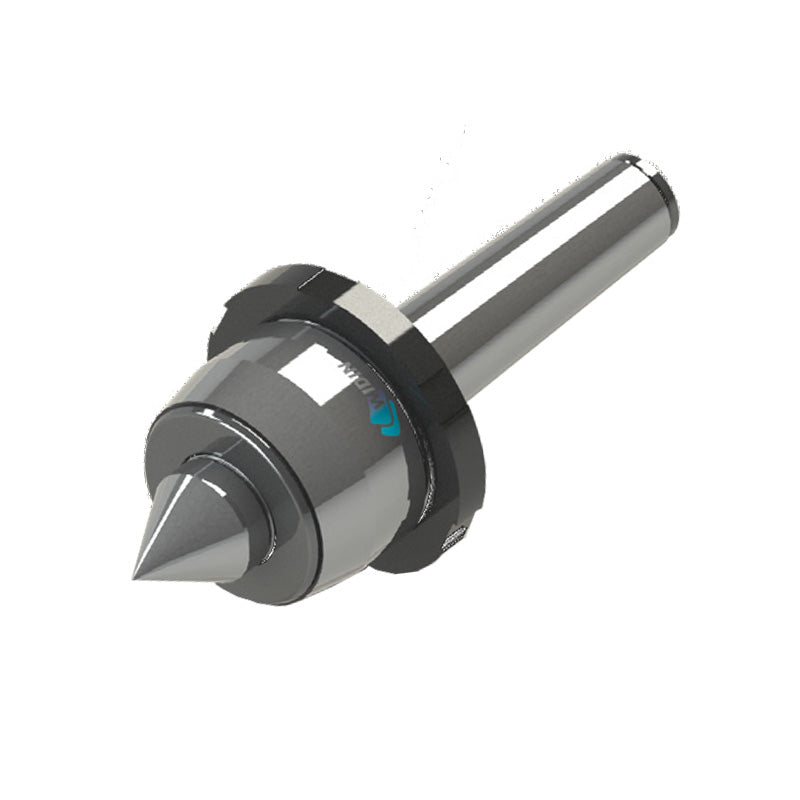

Widin Live Centre - Heavy Lathe - Minimizes Bite Interference - Nut Type - NCPN Type - NO.3

Widin Live Centre - Heavy Lathe - Minimizes Bite Interference - Nut Type - NCPN Type


From
£532.05
View Products
Need Help?
Contact Sales

  • NC STANDARD LATHE - MINIMIZES BITE INTERFERANCE & NUT TYPE- LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 6
  • Sealed to prevent the inflow of cutting oils and foreign substances
  • High precision of rotational accuracy and durability through triplexed bearing structure
  • Shaft heated to 58 - 62 HRc
  • Run Out 0.00012" or 0.003mm


  • Product SKU Size Head Diameter Point Length Point Diameter Max RPM Max Load Concentricity GL L2 L3 L4 L5 L Price Stock
    LC-3NCPN MT3 50 27 22 4800 800 0.003 23.825 45 5 77 81 158 £532.05

    5 days

    LC-4NCPN MT4 66 37 32 3800 1300 0.003 31.267 55 6.5 98.5 101.5 200 £598.06

    5 days

    LC-5NCPN MT5 82 45 40 3400 1900 0.005 44.399 65 6.5 116.5 129.5 246 £787.77

    5 days

    LC-6NCPN MT6 100 65 45 3000 2500 0.005 63.384 80 8 153 182 335 £1,783.84

    5 days
