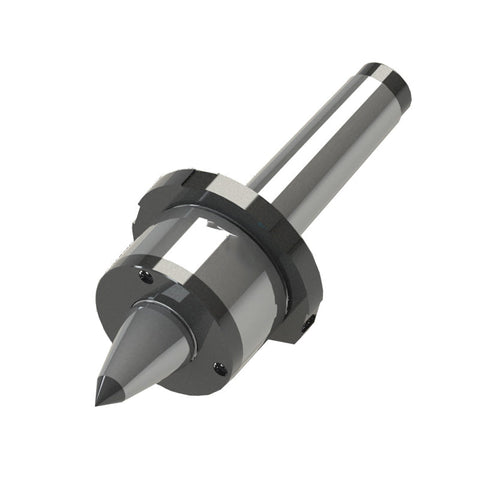

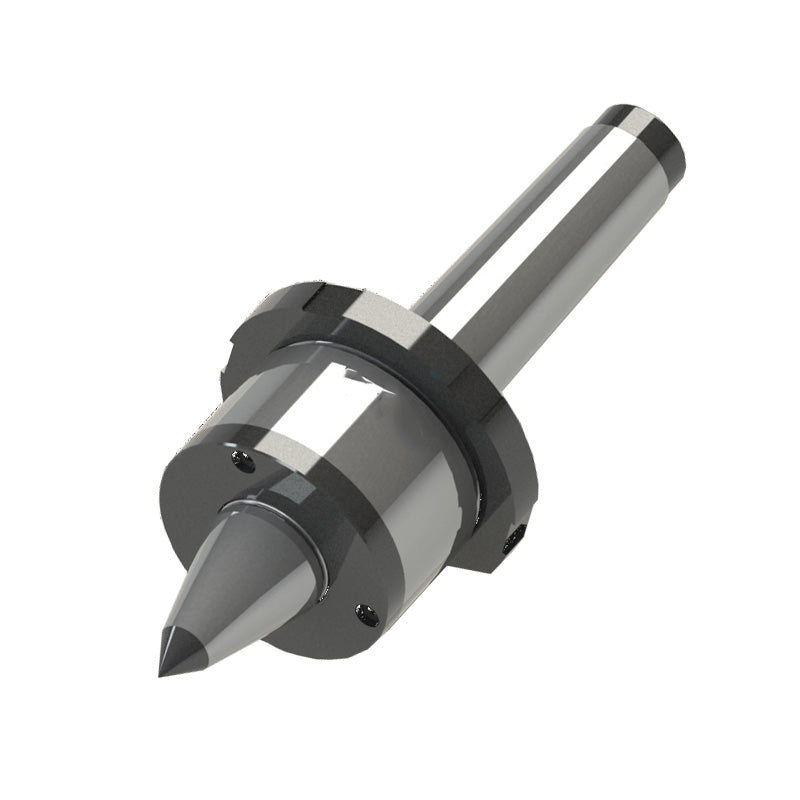

Widin Live Centre - High Speed Rotational - Carbide Tipped - Minimizes Bite Interference - SMBC Type - NO.3

Widin Live Centre - High Speed Rotational - Carbide Tipped - Minimizes Bite Interference - SMBC Type


From
£587.76
View Products
Need Help?
Contact Sales

  • NC HIGH SPEED ROTATIONAL - MINIMIZES BITE INTERFERANCE & CARBIDE TIPPED- LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 5
  • Special bearings for high speed rotation
  • Run Out 0.00012" or 0.003mm


  • Product SKU Size Head Diameter Point Length Point Diameter Max RPM Max Load Concentricity GL b L2 L3 L4 L5 C L Price Stock
    LC-3SMBC MT3 52 40 22 12000 160 0.003 23.825 10 51 5 96 81 10 177 £587.76

    5 days

    LC-4SMBC MT4 66 50 32 10000 520 0.003 31.267 14 55 6.5 111.5 101.5 14 213 £763.02

    5 days

    LC-5SMBC MT5 82 65 40 8000 940 0.005 44.399 16 75 6.5 146.55 129.5 18 276 £989.89

    5 days
