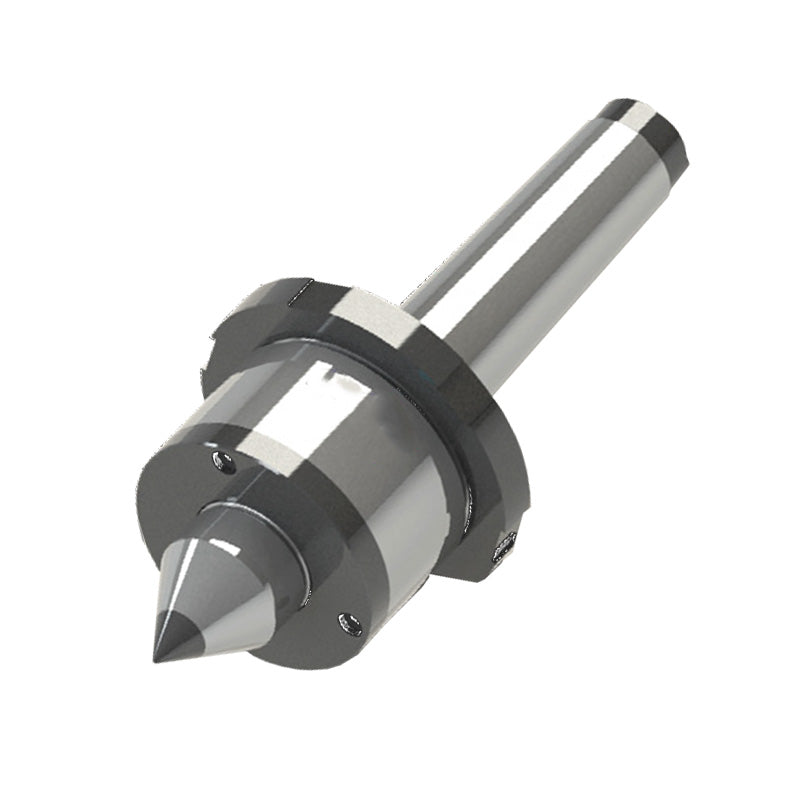

Widin Live Centre - High Speed Rotational - Carbide Tipped - Nut Type - SMCN Type - NO.3

Widin Live Centre - High Speed Rotational - Carbide Tipped - Nut Type - SMCN Type


From
£686.73
View Products
Need Help?
Contact Sales

  • NC HIGH SPEED ROTATIONAL- CARBIDE TIPPED & NUT TYPE - LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 5
  • Special bearings for high speed rotation
  • Run Out 0.00012" or 0.003mm


  • Product SKU Size Head Diameter Point Length Point Diameter Max RPM Max Load Concentricity GL C L N D E F G T Price Stock
    LC-3SMCN MT3 52 30 22 12000 300 0.003 23.825 30 167 70 51 5 86 81 10 £686.73

    5 days

    LC-4SMCN MT4 66 41 32 10000 1100 0.003 31.267 41 204 85 55 6.5 102.5 101.5 14 £888.86

    5 days

    LC-5SMCN MT5 82 51 40 8000 2200 0.005 44.399 51 262 105 75 6.5 132.5 129.5 16 £1,154.89

    5 days
