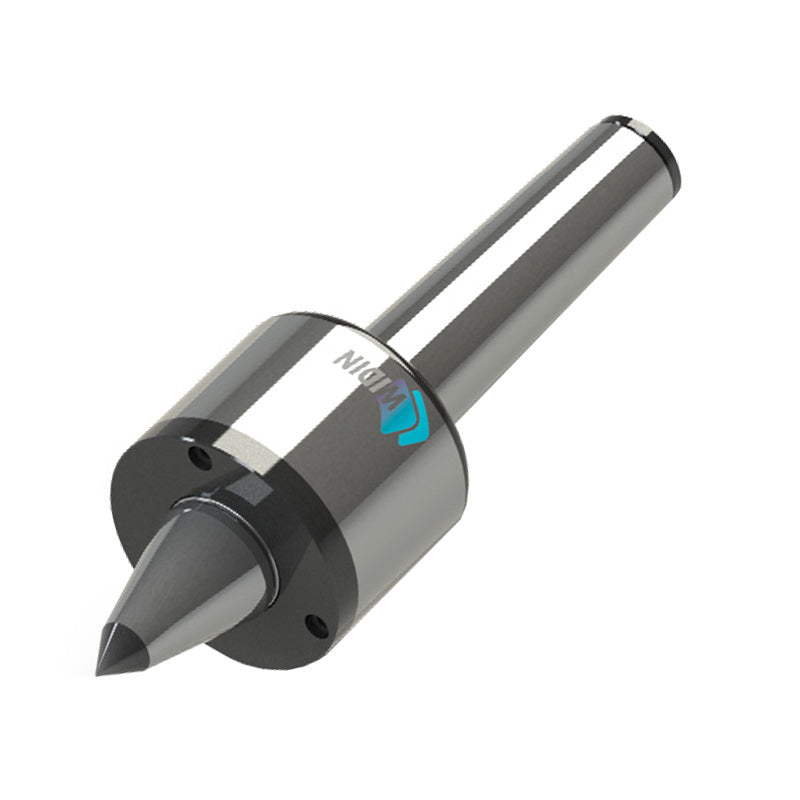

Widin Live Centre - High Speed Rotational - Long Life - Carbide Tipped - Minimizes Bite Interference - SMPBC Type - NO.3

Widin Live Centre - High Speed Rotational - Long Life - Carbide Tipped - Minimizes Bite Interference - SMPBC Type

From
£802.23
View Products
Need Help?
Contact Sales
0844 335 8984

  • NC HIGH SPEED ROTATIONAL & LONG LIFE - MINIMIZES BITE INTERFERANCE & CARBIDE TIPPED- LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 5
  • Special bearings for high speed rotation
  • Upgraded bearings resulting in better durability and longer life compared to SM Type
  • Run Out 0.00012" or 0.003mm

    • Product SKU Size Head Diameter Point Length Point Diameter Max RPM Max Load Concentricity GL b L2 L3 L4 L5 C L Price Stock
    LC-3SMPBC MT3 52 40 22 12000 160 0.003 23.825 10 51 5 96 81 10 177 £802.23

    5 days

    		 View product
    LC-4SMPBC MT4 66 50 32 10000 520 0.003 31.267 14 55 6.5 111.5 101.5 14 213 £1,039.36

    5 days

    		 View product
    LC-5SMPBC MT5 82 65 40 8000 940 0.005 44.399 16 75 6.5 146.5 129.5 18 276 £1,350.77

    5 days

    		 View product
