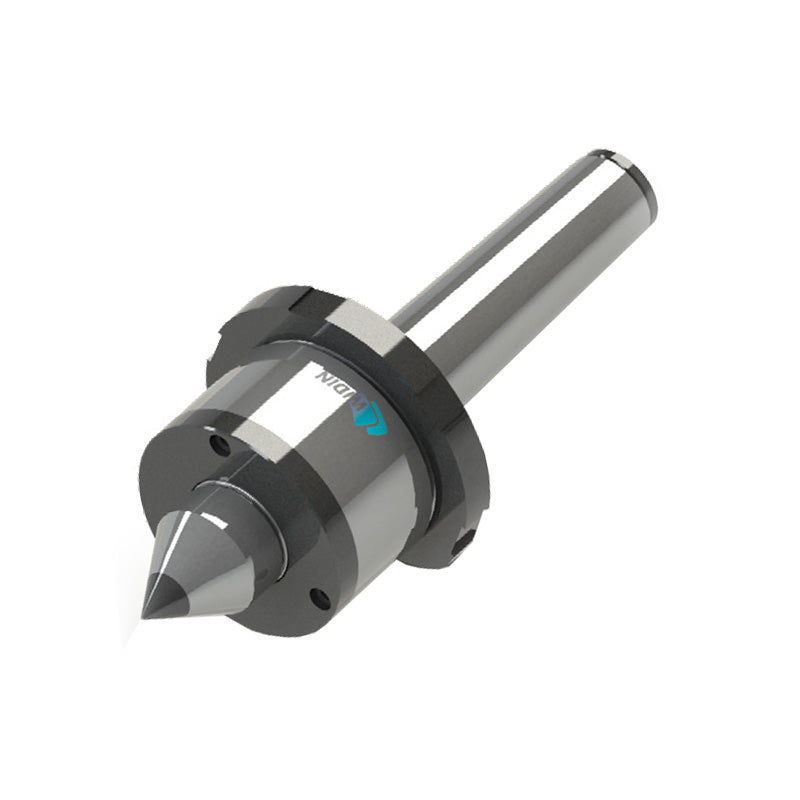

Widin Live Centre - High Speed Rotational - Long Life - Carbide Tipped - Minimizes Bite Interference - SMPCN Type - NO.3

Widin Live Centre - High Speed Rotational - Long Life - Carbide Tipped - Minimizes Bite Interference - SMPCN Type

From
£936.24
View Products
Need Help?
Contact Sales
0844 335 8984

  • NC HIGH SPEED ROTATIONAL & LONG LIFE - MINIMIZES BITE INTERFERANCE & CARBIDE TIPPED- LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 5
  • Special bearings for high speed rotation
  • Upgraded bearings resulting in better durability and longer life compared to SM Type
  • Run Out 0.00012" or 0.003mm

    • Product SKU Size Head Diameter Point Length Point Diameter Max RPM Max Load Concentricity GL L2 L3 L4 L5 C L N Price Stock
    LC-3SMPCN MT3 52 30 22 12000 330 0.003 23.825 51 5 86 81 10 167 70 £936.24

    5 days

    		 View product
    LC-4SMPCN MT4 66 41 32 10000 1100 0.003 31.267 55 6.5 102.5 101.5 14 204 85 £1,212.64

    5 days

    		 View product
    LC-5SMPCN MT5 82 51 40 8000 2200 0.005 44.399 75 6.5 132.5 129.5 18 262 105 £1,575.56

    5 days

    		 View product
