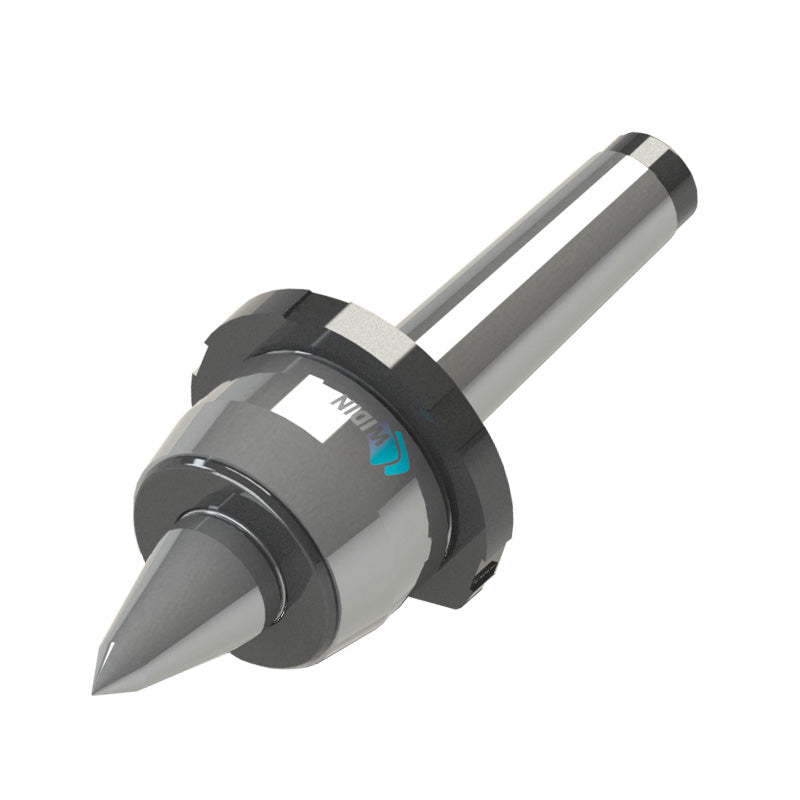

Widin Live Centre - Standard Lathe - Nut Type - NCBN Type

From
£340.29

View Products

Need Help?

Contact Sales

NC STANDARD LATHE - MINIMIZES BITE INTERFERANCE & NUT TYPE- LIVE CENTER

Morse Tapers Available - No. 3 - No. 6

Sealed to prevent the inflow of cutting oils and foreign substances

High precision of rotational accuracy and durability through triplexed bearing structure

Shaft heated to 58 - 62 HRc

Run Out 0.00012" or 0.003mm

Product SKU	Size	Head Diameter	Point Length	Point Diameter	Max RPM	Max Load	Concentricity	GL	b	L2	L3	L4	L5	L	N	Price	Stock
LC-3NCBN	MT3	50	47	22	4800	280	0.003	23.825	10	45	5	97	81	178	70	£340.29	5 days	View product
LC-4NCBN	MT4	66	53	32	3800	510	0.003	31.267	14	55	6.5	114.5	101.5	216	85	£389.78	5 days	View product
LC-5NCBN	MT5	82	65	40	3400	750	0.005	44.399	16	65	6.5	136.5	129.5	266	105	£476.38	5 days	View product
LC-6NCBN	MT6	105	78	45	3000	940	0.005	63.384	18	80	8	166	182	348	130	£1,173.42	5 days	View product
