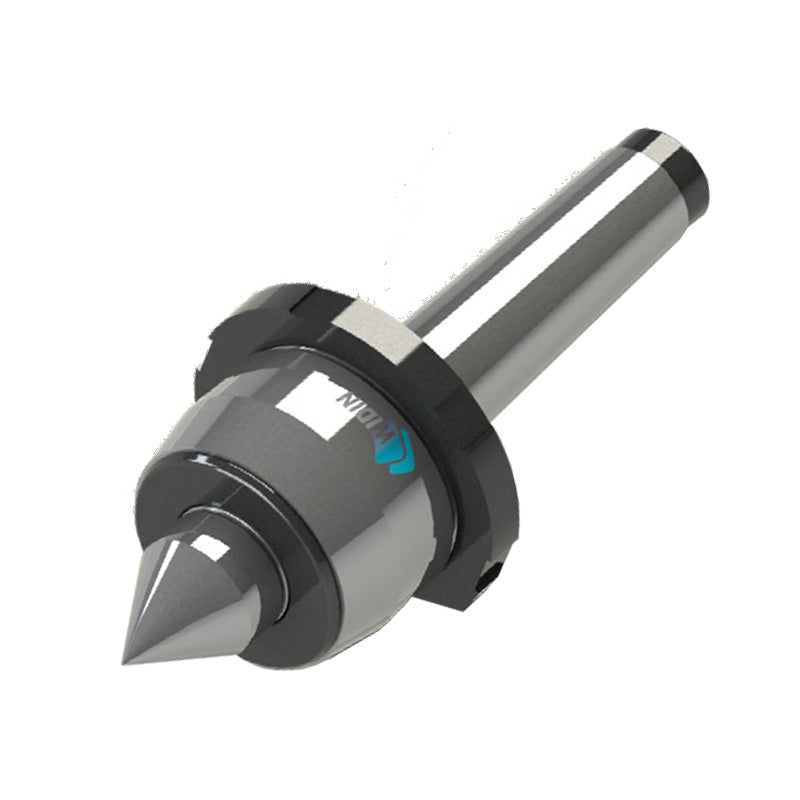

Widin Live Centre - Standard Lathe - Nut Type - NCN Type

From
£313.47

View Products

Need Help?

Contact Sales

NC STANDARD LATHE - NUT TYPE - LIVE CENTER

Morse Tapers Available - No. 3 - No. 6

Sealed to prevent the inflow of cutting oils and foreign substances

High precision of rotational accuracy and durability through triplexed bearing structure

Shaft heated to 58 - 62 HRc

Run Out 0.00012" or 0.003mm

Product SKU	Size	Head Diameter	Point Length	Point Diameter	Max RPM	Max Load	Concentricity	GL	L2	L3	L4	L5	L	N	Price	Stock
LC-3NCN	MT3	50	27	22	4800	630	0.003	23.825	45	5	77	81	158	70	£313.47	5 days	View product
LC-4NCN	MT4	66	41	32	3800	1100	0.003	31.267	55	6.5	102.5	101.5	204	85	£354.70	5 days	View product
LC-5NCN	MT5	82	50	40	3400	1600	0.005	44.399	65	6.5	121.5	129.5	251	105	£466.04	5 days	View product
LC-6NCN	MT6	105	54	45	3000	2100	0.005	63.384	80	8	142	182	324	130	£1,051.77	5 days	View product
