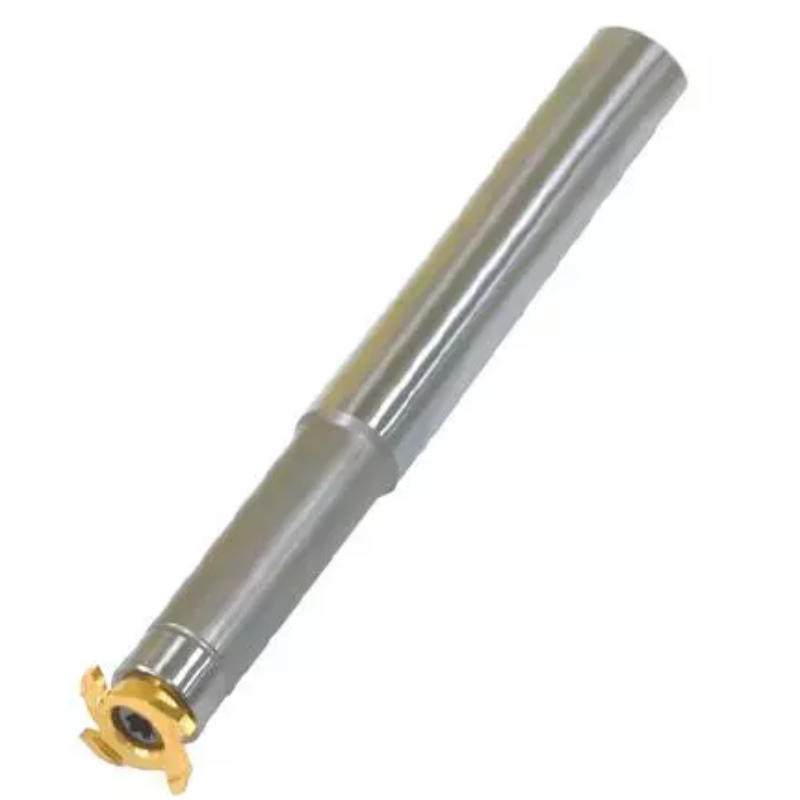

Y.T. UFO Indexable Holder Carbide - Blade Diameter 28 - 40mm - Overall Length 150mm - Neck Diameter 15.8mm
PRO2200189
Availability: 5 days subject to availability
In long overhang machining, carbide shank provides relatively better stability and enhance the tool life of the insert than HSS shanks, despite it is always more expensive, but at the same time ... Read more
| Blade Diameter | 28 29 30 32 35 40 mm |
| Neck Diameter | 15.8 |
| Reach | 15 |
| Shank Diameter | 16 |
| Overall Length | 150 |

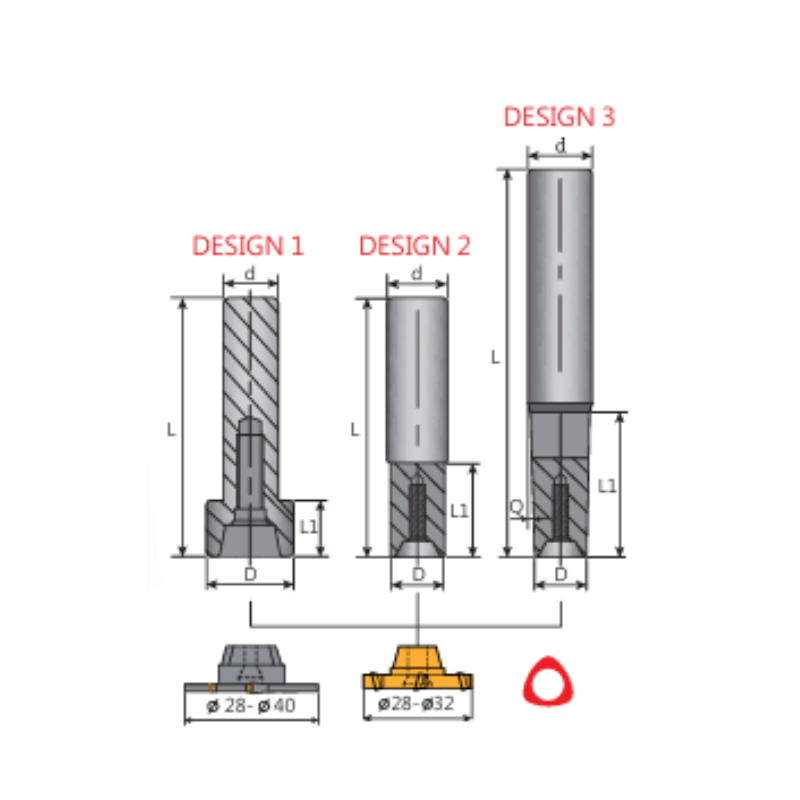

| Design Type | 2 |
| Q | - |
| KG | 0.55 |
| Screw | C05016 |
| Key | T20P |
Need Assistance?
Speak to our Expert Team
Call Sales
01732 887334
Mon - Fri | 9am - 5pm
In long overhang machining, carbide shank provides relatively better stability and enhance the tool life of the insert than HSS shanks, despite it is always more expensive, but at the same time carbide shank improves the vibration resistance and the durability. Whether it is used in T-slot insert or in thread milling insert, it is recommended to use carbide shank to reduce the cost by more than 50%.
Different shank can fit in different dia. of inserts from 10 - 80mm and other inserts in 11 different profiles.
