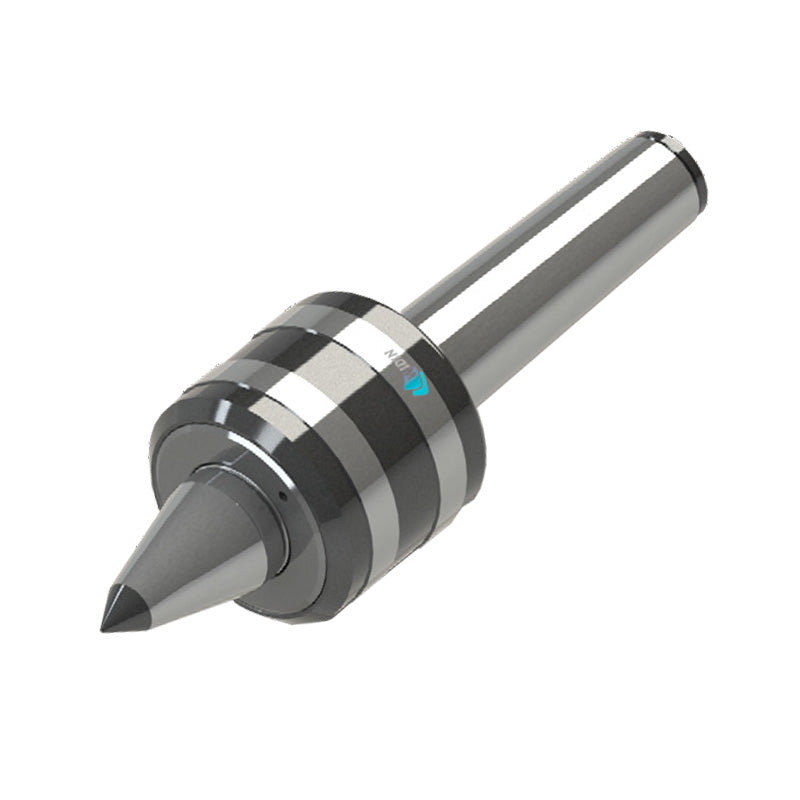

Widin Live Centre - Heavy Duty & Weight Requirements Lathe - Minimizes Bite Interference - Carbide Tipped - NKBC Type - NO.4

LC-4NKBC

Availability: 5 days subject to availability

  • NC HEAVY DUTY & WEIGHT REQUIREMENTS LATHE - MINIMIZES BITE INTERFERANCE & CARBIDE TIPPED- LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 6
  • Sealed to prevent the i... Read more

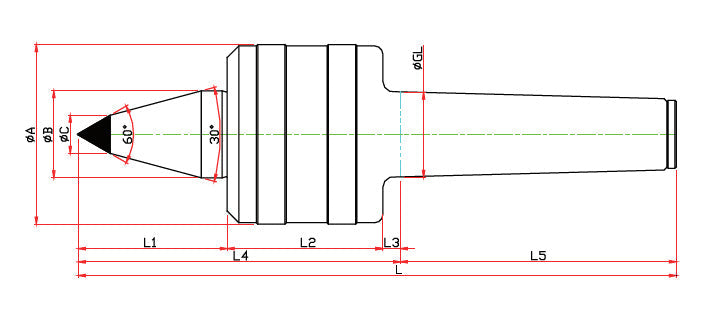

  • Size MT4
    Head Diameter 66
    Point Length 53
    Point Diameter 32
    Max RPM 3800
    Max Load 1400
    Concentricity 0.003
    GL 31.267
    L2 57
    L3 6.5
    L4 116.5
    L5 101.5
    C 14
    L 218


    Need Assistance?

    Speak to our Expert Team

    Call Sales

    01732 887334

    Mon - Fri | 9am - 5pm

    Email Us

    info@protool-ltd.co.uk

    Our team is ready to assist

  • NC HEAVY DUTY & WEIGHT REQUIREMENTS LATHE - MINIMIZES BITE INTERFERANCE & CARBIDE TIPPED- LIVE CENTER
  • Morse Tapers Available - No. 3 - No. 6
  • Sealed to prevent the inflow of cutting oils and foreign substances
  • Longer life due to taper roller bearings
  • Shaft heated to 58 - 62 HRc
  • Run Out 0.00012" or 0.003mm
