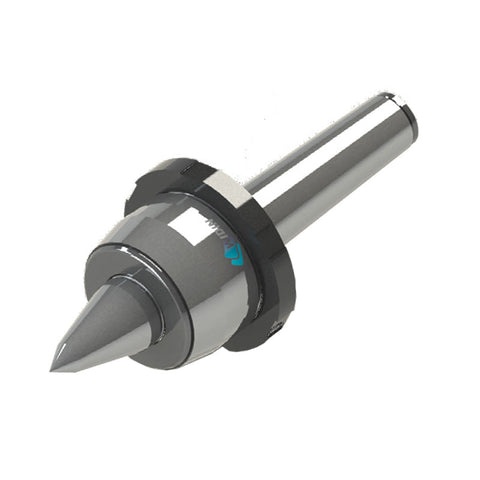

Widin Live Centre - Heavy Lathe - Minimizes Bite Interference - Nut Type - NCPBN Type - NO.5
LC-5NCPBN
Availability: 5 days subject to availability
Live Center for CNC lathe Prevent the inflow of cutting oil and foreign substance Stronger bearing capacity and durability than NC TYPE High degree of accuracy of rotation and high durability by us... Read more
| Size | MT5 |
| Head Diameter | 82 |
| Point Length | 65 |
| Point Diameter | 40 |
| Max RPM | 3400 |
| Max Load | 1000 |
| Concentricity | 0.005 |
| GL | 44.399 |
| b | 16 |
| L2 | 65 |
| L3 | 6.5 |
| L4 | 136.5 |
| L5 | 129.5 |
| L | 266 |
Need Assistance?
Speak to our Expert Team
Call Sales
01732 887334
Mon - Fri | 9am - 5pm
Live Center for CNC lathe
Prevent the inflow of cutting oil and foreign substance
Stronger bearing capacity and durability than NC TYPE
High degree of accuracy of rotation and high durability by using the triplexed bearing structure as high degree of precision
Heat treatment hardness of Shaft : HRc58-62
RUN OUT 0.003
