Europa Tools Powder Metal End Mill - 4 Flute Multiple Helix With Corner Radius -16mm
PM75S1600
Availability: 1-2 days subject to availability
This end mill features a unique 4-flute design with multiple helix angles, which enables efficient material removal, improved chip evacuation, and enhanced stability during machining processes. Additionally, it is equipped with a corner radius, allowing for smoother cutting and reduced tool stress, especially in contouring and profiling applications. The PM75S grade powder metal construction provides exceptional durability, wear resistance, and heat resistance, ensuring extended tool life and consistent performance even in demanding applications. With its precise dimensions and superior craftsmanship, this end mill delivers accurate and smooth cutting results, contributing to excellent surface finish and dimensional accuracy.

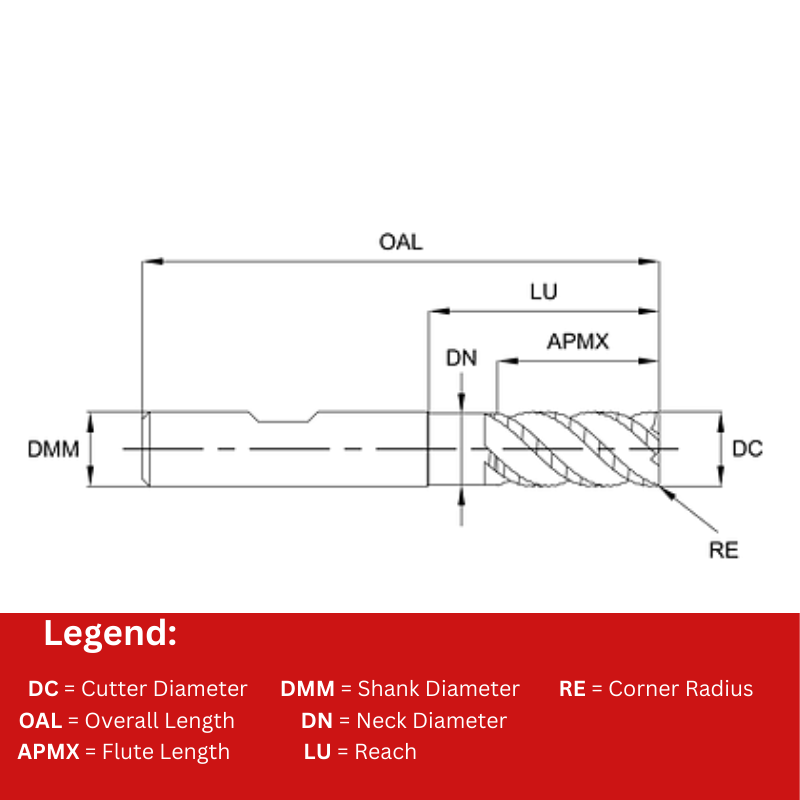

| Cutter Diameter (DC) | 16 |
| Number of Flutes | 4 |
| Flute Length (APMX) | 32 |
| Overall Length (OAL) | 92 |
| Shank Diameter (DMM) | 16 |
| Reach (LU) | 44 |
| Neck Diameter (DN) | 16 |
| Corner Radius (RE) | 1 |
This end mill features a unique 4-flute design with multiple helix angles, which enables efficient material removal, improved chip evacuation, and enhanced stability during machining processes. Additionally, it is equipped with a corner radius, allowing for smoother cutting and reduced tool stress, especially in contouring and profiling applications. The PM75S grade powder metal construction provides exceptional durability, wear resistance, and heat resistance, ensuring extended tool life and consistent performance even in demanding applications. With its precise dimensions and superior craftsmanship, this end mill delivers accurate and smooth cutting results, contributing to excellent surface finish and dimensional accuracy.
| Cutter Diameter (DC) | 16 |
| Number of Flutes | 4 |
| Flute Length (APMX) | 32 |
| Overall Length (OAL) | 92 |
| Shank Diameter (DMM) | 16 |
| Reach (LU) | 44 |
| Neck Diameter (DN) | 16 |
| Corner Radius (RE) | 1 |
