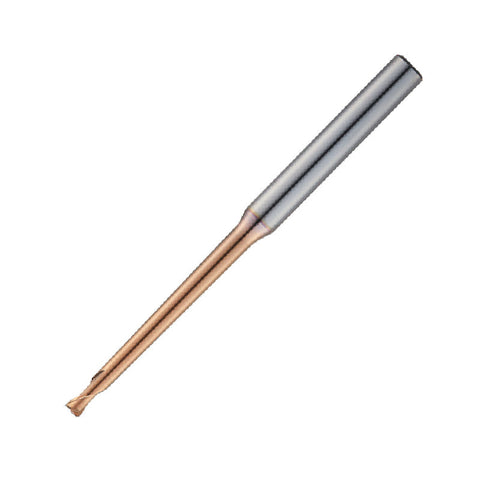

Widin Carbide Corner Radius End Mill - 2 Flute Tapered Neck Type - 1mm x 25mm xR0.3
ESTNR2010-25-0903
Availability: 5 days subject to availability
A versatile end mill designed for precise machining of deep grooves and sloped surfaces. This end mill is specifically engineered with various neck specifications to accommodate different machining requirements. One of the key advantages of the ZSTNR is its taper type neck design, which helps reduce tool vibration and minimize chattering during operation. This design feature enhances the stability of the cutting process, resulting in improved surface finish and dimensional accuracy. This end mill offers precise R machining by reinforcing chipping resistance in the corner R part. This feature enables clean and accurate cutting, even in challenging materials or intricate geometries.
| Cutter Diameter | 1 |
| Number of Flutes | 2 |
| Flute Length | 0.8 |
| Overall Length | 75 |
| Shank Diameter | 4 |
| Reach | 30 |
| Corner Radius | 0.2 |
| Neck Diameter | 0.94 |
| Taper Angle | 0.9° |
A versatile end mill designed for precise machining of deep grooves and sloped surfaces. This end mill is specifically engineered with various neck specifications to accommodate different machining requirements. One of the key advantages of the ZSTNR is its taper type neck design, which helps reduce tool vibration and minimize chattering during operation. This design feature enhances the stability of the cutting process, resulting in improved surface finish and dimensional accuracy. This end mill offers precise R machining by reinforcing chipping resistance in the corner R part. This feature enables clean and accurate cutting, even in challenging materials or intricate geometries.
| Cutter Diameter | 1 |
| Number of Flutes | 2 |
| Flute Length | 0.8 |
| Overall Length | 75 |
| Shank Diameter | 4 |
| Reach | 30 |
| Corner Radius | 0.2 |
| Neck Diameter | 0.94 |
| Taper Angle | 0.9° |
